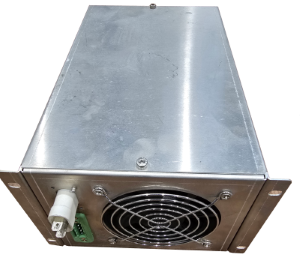

Input power : AC 180~240V, single phase

Microwave frequncy : 2.45GHz

Microwave CW output power : max. 1500W

Interface : 0~5V analogue control

Available control range : 20~100%

Size : 180[W] x 121[H] x 244[L]

Input power : AC 180~240V, single phase

Microwave frequncy : 2.45GHz

Microwave CW output power : max. 1200W

Interface : 0~5V analogue control

Available control range : 20~100%

Size : 180[W] x 121[H] x 244[L]

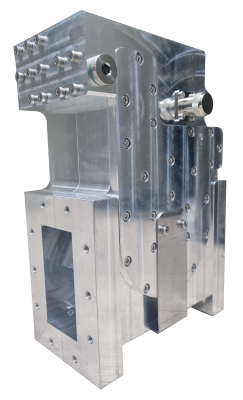

Material : Aluminum

Flange : WR340 (RG 112/U)

Microwave frequncy : 2.45GHz ± 50MHz

Input power : max. 3kW continous

Insert loss : max. 0.3dB

Isolation : min. 20dB

Coupler probe : Type N female

Water connection : PT 1/4 female threads

Water flow : Inlet 20 ± 5 ℃, min. 3 lpm

Weight : 6.6 kgs

Size : 258.4 x 95.3 x 172.7

Material : Aluminum

Microwave frequncy : 2.45GHz ± 50MHz

Input power : max. 6kW continous

Flange : WR340 (RG 112/U)

Weight : 3.2 kgs

Size : 258.4 x 95.3 x 138

Material : Aluminum / Stainless steel

Microwave frequncy : 2.45GHz / 915MHz

Input power : 1kW ~ 100kW

Flange : WR284 / WR340 / WR430 / WR975

Material : Aluminum / Stainless steel

Microwave frequncy : 2.45GHz / 915MHz

Input power : 1kW ~ 100kW

Flange : WR284 / WR340 / WR430 / WR975

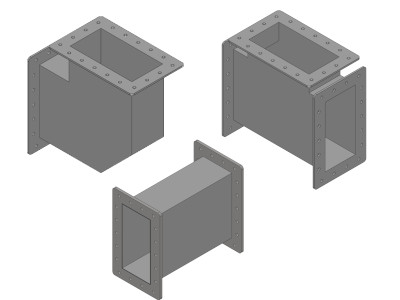

Shape : E-band / H-band / Elbow / Tee

Material : Aluminum / Stainless steel

Microwave frequncy : 2.45GHz / 915MHz

Flange : WR284 / WR340 / WR430 / WR975

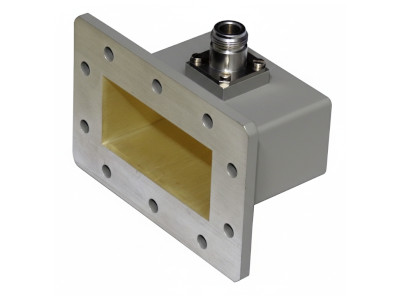

Type : N / SMA / TNC

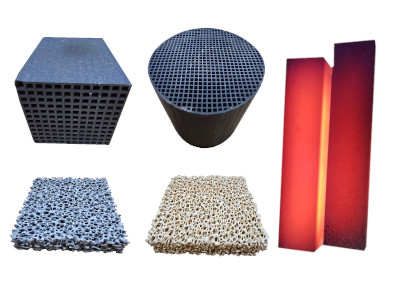

Material : SiC, Carbon, Zironia, etc.

Temperature : max. 1300℃ (SiC base)

Temperature : max. 1700℃ (Zirconia base)

Shape : Flat bar, Honeycomb, Round bar, etc
